1. Crystal database

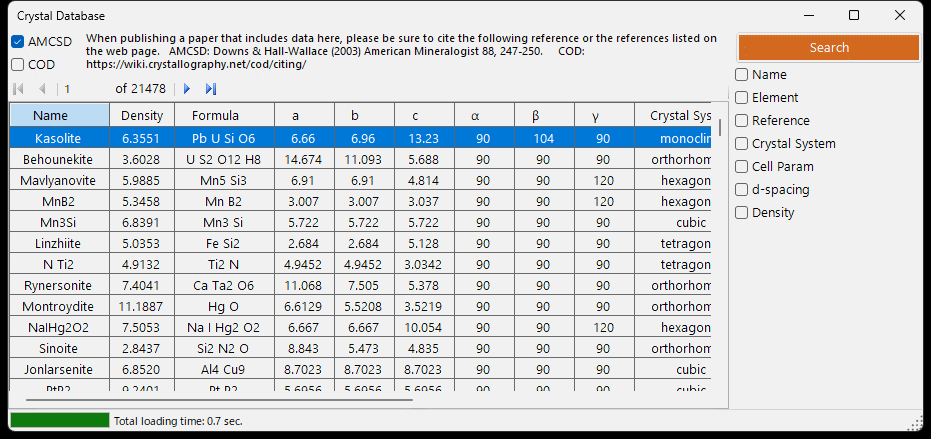

The Crystal Database provides functions to search and import more than 20,000 crystal structures.
Based on the American Mineralogist Crystal Structure Database. Please cite:
Downs, R.T. and Hall-Wallace, M. (2003) The American Mineralogist Crystal Structure Database. American Mineralogist 88, 247-250.
Database.mp4

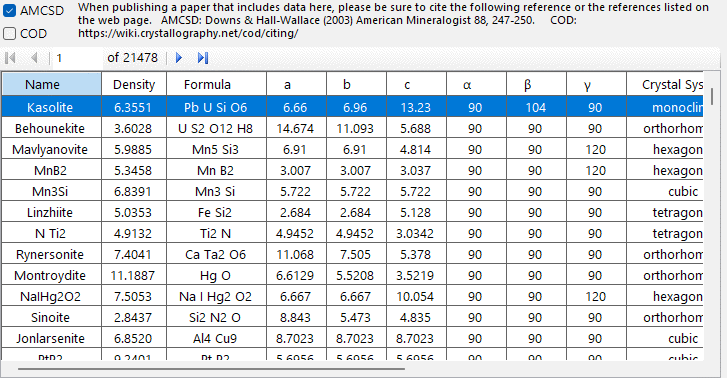

Displays crystals matching search criteria. Select a crystal to transfer to Main window's Crystal Information. Press Add or Replace to add to Crystal List.

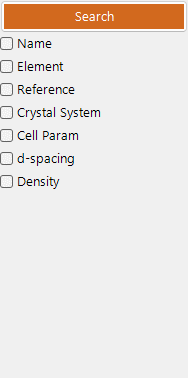

| Criterion | Description |
|---|---|
| Name | Crystal name |
| Element | Periodic table selector (may/must/must-not include) |
| Reference | Title, journal, author |
| Crystal system | Select crystal system |
| Cell Param | Lattice constants and error |
| d-spacing | Strongest reflection d-values and error |
| Density | Density and error |
