Summary

Follow-up to #3672 (merged). A complete, line-by-line hardening pass over every file in @astryxdesign/charts — defensive robustness and correctness only. No new features, no API/type-contract changes, no scope creep. Package stays private / canary-only. All 31 source files were audited one slice at a time, each change typecheck-gated; full verification (typecheck + lint + build + Storybook consumer typecheck) passes.

Genuine bugs fixed

Stacked y-domain under-coverage (layout.ts) — mixed-sign and yBaseline: 'data' stacks rendered outside the scale and clipped; the domain now walks every layer boundary.
GPU-pick hover Y-flip off-by-one (dotGLInteractive) — readPixels sampled one row too high (top-edge miss); fixed to texH - 1 - py.
Unbounded tickCount crash (ChartAxis/ChartGrid) — an out-of-range count reaching d3 .ticks() throws RangeError; now clamped.
Non-finite palette count (getChartColors) — Infinity slipped past the guard into a ~2^53 Array.from allocation (hang/OOM); now rejected.
Custom-tooltip-render-null card reappeared + stale hovered-index "undefined" card (ChartTooltip); plus NaN guards on the hover dots and crosshair.
createProgram shader leak (webgl.ts) — shaders orphaned on the compile-failure path and never flagged for deletion after link.
Non-finite guards added for xPixel input, Chart size (a non-finite height/margin no longer collapses every scale), errorBar cap width, and date-only strings in formatters.

Robustness / hygiene

'use client' on the barrel-exported ChartContext.
Annotation marks converged onto the shared xPixel/isBandScale helpers (removed unsafe casts).
Scatter dodge excludes non-finite y; color accessor wrapped in try/catch; whitespace-only paints treated as unset.

Files audited and found already solid (left unchanged to avoid churn): bar/line/area, heatmapGL/streamGL, dotGL, legend.ts, ChartSwatch, useChartColors, index.ts, and most of types.ts.

Test plan

charts typecheck, lint, build all clean
Storybook (consumer) typechecks clean
Code-owner review

Made with Cursor

Update — categorical-y heatmap stacked on this branch

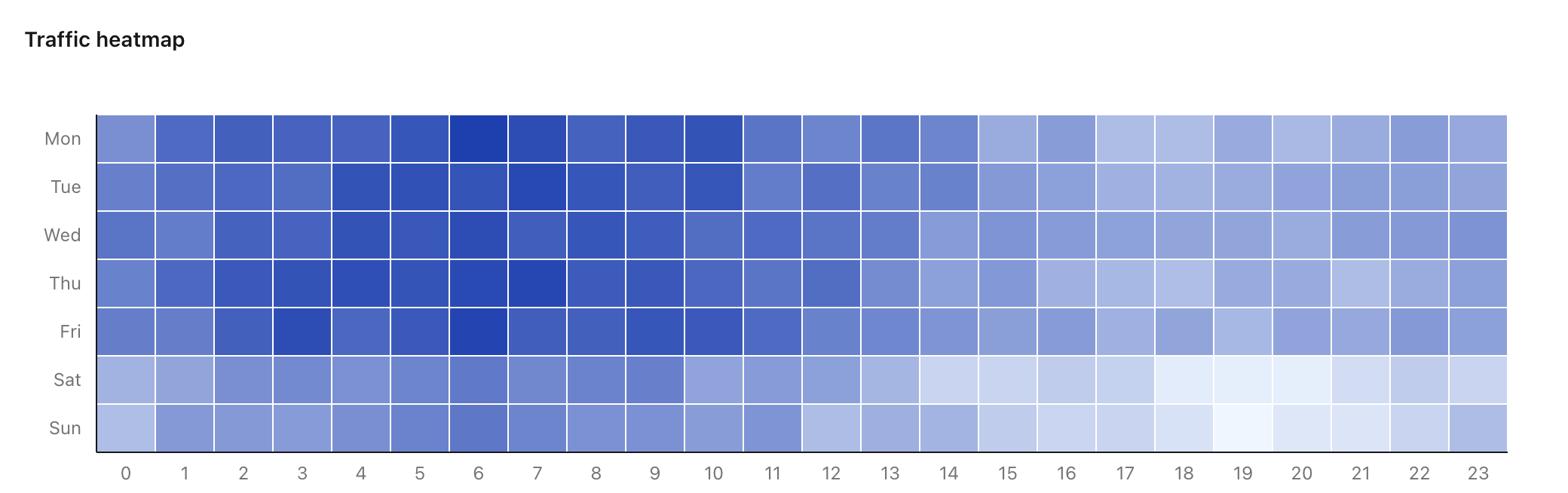

feat/charts-hardening now also carries the categorical-y heatmap fast-follow on top of the hardening pass:

Cells tile to the band step — no gaps between columns/rows.
The y-axis is now categorical — row labels aligned to each cell, instead of a meaningless linear value scale.
Both the x and y axis lines frame the grid edge-to-edge.

Co-authored-by: Cursor <cursoragent@cursor.com>
