This repository features scripts for downloading and manipulating the AstroVision datasets

About

AstroVision is a first-of-a-kind, large-scale dataset of real small body images from both legacy and ongoing deep space missions, which currently features over 110,000 densely annotated, real images of sixteen small bodies from eight missions. AstroVision was developed to facilitate the study of computer vision and deep learning for autonomous navigation in the vicinity of a small body, with speicial emphasis on training and evaluation of deep learning-based keypoint detection and feature description methods.

If you find our datasets useful for your research, please cite the AstroVision paper:

@article{driver2023astrovision,
  title={{AstroVision}: Towards Autonomous Feature Detection and Description for Missions to Small Bodies Using Deep Learning},
  author={Driver, Travis and Skinner, Katherine and Dor, Mehregan and Tsiotras, Panagiotis},
  journal={Acta Astronautica: Special Issue on AI for Space},
  year={2023},
  volume={210},
  pages={393--410}
}

Please make sure to ⭐ star and 👁️ watch the repository to show support and get notified of any updates!

Downloading the datasets

Note: We will continue to release datasets and update this repository over the coming months. Available datasets can be found by checking the lists/ directory or our 🤗 Hugging Face page

The AstroVision datasets may be downloaded using the provided download_astrovision.py script or by downloading them directly from our 🤗 Hugging Face page. The train and test data may be downloaded using the --train and --test options, respectively:

python download_astrovision.py --train  # downloads training data to data/test
python download_astrovision.py --test  # downloads training data to data/train

The --segments (--clusters) option will download all available segments (clusters). If you'd like to download segments (clusters) from a specific dataset, use the --dataset_name <name_of_dataset> option, e.g., --dataset_name dawn_ceres. Specific segments (clusters) from a specific dataset may be downloaded using the --dataset_name <name_of_dataset> and --segment_name <name_of_segment> (--cluster_name <name_of_cluster>) options, e.g.,

python download_astrovision.py --segments --dataset_name dawn_ceres --segment_name 2015293_c6_orbit125  # download specific segment
python download_astrovision.py --clusters --dataset_name dawn_ceres --cluster_name 00000032  # download specific cluster

Below we provide more detailed information about each dataset.

Mission	Target	Launch (yyyy/mm/dd)	# Images	Disk (GB)	Clusters	Segments
NEAR	433 Eros	1996/02/17	12827	13.1	TBA	TBA
Cassini	Mimas (Saturn I)	1997/10/15	307	3.0	N/A	cas_mimas
	Tethys (Saturn III)		751	9.2	N/A	cas_tethys
	Dione (Saturn IV)		1381	12.0	N/A	cas_dione
	Rhea (Saturn V)		665	5.1	N/A	cas_rhea
	Phoebe (Saturn IX)		96	0.8	N/A	cas_phoebe
	Janus (Saturn X)		184	2.0	N/A	cas_janus
	Epimetheus (Saturn XI)		133	1.3	N/A	cas_epim
Hayabusa	25143 Itokawa	2003/05/09	560	5.4	N/A	haya_itokawa
Mars Express	Phobos (Mars I)	2003/06/02	890	4.1	N/A	TBA
Rosetta (NavCam)	67P/Churyumov–Gerasimenko	2004/03/02	12315	95.0	TBA / test	TBA
Rosetta (OSIRIS)	67P/Churyumov–Gerasimenko	2004/03/02	13993	95.0	TBA / test	TBA
	21 Lutetia		40	2.1	N/A	rosetta_lutetia
Dawn	1 Ceres	2007/09/27	38540	204.8	train / test	TBA
	4 Vesta		17504	93.3	train / test	dawn_vesta
Hayabusa2	162173 Ryugu	2014/12/03	640	6.0	N/A	TBA
OSIRIS-REx	101955 Bennu	2016/09/08	16618	106.5	train / test	TBA
TOTAL			117493	658.7

Data format

Following the popular COLMAP data format, each data segment contains the files images.bin, cameras.bin, and points3D.bin, which contain the camera extrinsics and keypoints, camera intrinsics, and 3D point cloud data, respectively.

• cameras.bin encodes a dictionary of camera_id and Camera pairs. Camera objects are structured as follows:

  • Camera.id: defines the unique (and possibly noncontiguious) identifier for the Camera.
  • Camera.model: the camera model. We utilize the "PINHOLE" camera model, as AstroVision contains undistorted images.
  • Camera.width & Camera.height: the width and height of the sensor in pixels.
  • Camera.params: List of cameras parameters (intrinsics). For the "PINHOLE" camera model, params = [fx, fy, cx, cy], where fx and fy are the focal lengths in $x$ and $y$, respectively, and (cx, cy) is the principal point of the camera.

• images.bin encodes a dictionary of image_id and Image pairs. Image objects are structured as follows:

  • Image.id: defines the unique (and possibly noncontiguious) identifier for the Image.
  • Image.tvec: $\mathbf{r}^\mathcal{C_ i}_ {\mathrm{BC}_ i}$, i.e., the relative position of the origin of the camera frame $\mathcal{C}_ i$ with respect to the origin of the body-fixed frame $\mathcal{B}$ expressed in the $\mathcal{C}_ i$ frame.
  • Image.qvec: $\mathbf{q}_ {\mathcal{C}_ i\mathcal{B}}$, i.e., the relative orientation of the camera frame $\mathcal{C}_ i$ with respect to the body-fixed frame $\mathcal{B}$. The user may call Image.qvec2rotmat() to get the corresponding rotation matrix $R_ {\mathcal{C}_ i\mathcal{B}}$.
  • Image.camera_id: the identifer for the camera that was used to capture the image.
  • Image.name: the name of the corresponding file, e.g., 00000000.png.
  • Image.xys: contains all of the keypoints $\mathbf{p}^{(i)}_ k$ in image $i$, stored as a ($N$, 2) array. In our case, the keypoints are the forward-projected model vertices.
  • Image.point3D_ids: stores the point3D_id for each keypoint in Image.xys, which can be used to fetch the corresponding point3D from the points3D dictionary.

• points3D.bin enocdes a dictionary of point3D_id and Point3D pairs. Point3D objects are structured as follows:

  • Point3D.id: defines the unique (and possibly noncontiguious) identifier for the Point3D.
  • Point3D.xyz: the 3D-coordinates of the landmark in the body-fixed frame, i.e., $\mathbf{\ell} _{k}^\mathcal{B}$.
  • Point3D.image_ids: the ID of the images in which the landmark was observed.
  • Point3D.point2D_idxs: the index in Image.xys that corresponds to the landmark observation, i.e., xy = images[Point3D.image_ids[k]].xys[Point3D.point2D_idxs[k]] given some index k.

These three data containers, along with the ground truth shape model, completely describe the scene.

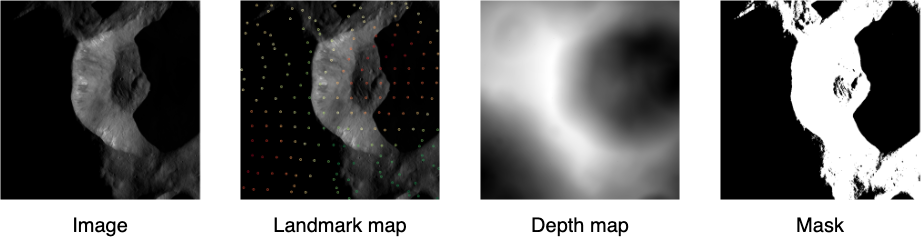

In addition to the scene geometry, each image is annotated with a landmark map, a depth map, and a visibility mask.

• The landmark map provides a consistent, discrete set of reference points for sparse correspondence computation and is derived by forward-projecting vertices from a medium-resolution (i.e., $\sim$ 800k facets) shape model onto the image plane. We classify visible landmarks by tracing rays (via the Trimesh library) from the landmarks toward the camera origin and recording landmarks whose line-of-sight ray does not intersect the 3D model.
• The depth map provides a dense representation of the imaged surface and is computed by backward-projecting rays at each pixel in the image and recording the depth of the intersection between the ray and a high-resolution (i.e., $\sim$ 3.2 million facets) shape model.
• The visbility mask provides an estimate of the non-occluded portions of the imaged surface.

Note: Instead of the traditional $z$-depth parametrization used for depth maps, we use the absolute depth, similar to the inverse depth parameterization. Let $\mathbf{m}^{(i)}_ k = K^{-1} \underline{\mathbf{p}}^{(i)}_ k$, where $K$ is the calibration matrix. Then, the landmark $\mathbf{\ell}_ k$ corresponding to keypoint $\mathbf{p}^{(i)}_ {k}$ with depth $d^{\mathcal{C}_ i}_ k$ (from the depth map) can be computed via

$$ \begin{align} \underline{\mathbf{\ell}}_ {k}^\mathcal{B} = \Pi^{-1}\left(\mathbf{p}^{(i)}_ k, d^{\mathcal{C}_ i}_ k, T_ {\mathcal{C}_ i\mathcal{B}}; K\right) &= T_ {\mathcal{C}_ i\mathcal{B}}^{-1} \begin{bmatrix} d^{\mathcal{C}_ i}_ k \mathbf{m}^{(i)}_ k / |\mathbf{m}^{(i)}_ k| \ 1 \end{bmatrix} \\ &= \frac{d^{\mathcal{C}_ i}_ k}{|\mathbf{m}^{(i)}_ k|} R_ {\mathcal{BC_i}} \mathbf{m}^{(i)} _k + \mathbf{r}^\mathcal{B} _{\mathrm{C} _i\mathrm{B}}. \end{align} $$

Please refer to our Google Colaboratory demo for more details.

Dataset tools

We will be releasing tools for manipulating (e.g., splitting and stitching) and generating the AstroVision dataset in a future release.

Projects that have used AstroVision

Below is a list of papers that have utilized the AstroVision datasets:

• Deep Monocular Hazard Detection for Safe Small Body Landing. AIAA/AAS Space Flight Mechanics Meeting, 2023
• Efficient Feature Description for Small Body Relative Navigation using Binary Convolutional Neural Networks. AAS Guidance, Navigation, and Control (GN&C) Conference, 2023.
