Change plant loop heat pump concurrent operation from recurring warning to severe/fatal error with details #8789
Conversation
…-simul-heatcool
…-simul-heatcool
matthew-larson
added
Defect
|
@Myoldmopar @nealkruis An alternative would be to move this function call to within the iteration steps (or possibly before setting the operating flow rates in the simulate function) and if both heat pumps are running, have a way to determine which load (heating or cooling) gets precedence and shut off it's companion heat pump. This would ensure the heat pumps are not heating/cooling concurrently and then provide a warning to the user that this action was taken. |
|
Have you given any additional thought to how you would determine which mode has precedence? I personally think that would be a lot nicer than just fatalling out, but I'm open to discussion. I suppose we could always ask the user to specify one mode over the other if we wanted, that would put the burden onto them to make the best decision for their particular application rather than us making that choice for them. @rraustad @mjwitte what do you think? |
|
The problem is the dual plant loops. Also sounds like a new SPM is required for objects that have 2 coils to model a single coil but that's out of scope. I would think the magnitude of the load would dictate which coil to operate. Usually this would be load > 0 for 1 coil and 0 load for the other but when that rule is broken, the largest load is met and the other coil is locked out. A field HP would also do this since it is a single coil but then it's also a single plant loop. |
|
@matthew-larson what's your thoughts on wrapping this up? The last comment from @rraustad does make sense, that you try to meet the larger demand, but it will be a problem if the previous plant loop isn't resimulated. But fatalling out seems excessive when it theoretically could just meet one of the demands. Let me know if we should discuss this again or if you have a path forward. Or if I'm missing something on the status of this. |
|
@Myoldmopar I agree trying to meet the largest load makes the most sense. Due to the added complexity and priority with other issues, we are holding off on this for now. We may try to get it in this release if possible or wait until the next round. If it is urgent, we are OK with someone else taking over this pull request as well. |
Myoldmopar
modified the milestones:
EnergyPlus 9.6 BugFix Freeze,
EnergyPlus 9.6 Release
|
@matthew-larson @lgentile it has been 28 days since this pull request was last updated. |
| ShowContinueError( | ||
| state, | ||
| format("PLHP companion coil source side heat transfer rate= {:.2R} [W]", thisPLHP.companionHeatPumpCoil->sourceSideHeatTransfer)); | ||
| ShowFatalError(state, "CheckConcurrentOperation: Simulation terminated because of problems in plant loop heat pump operation"); |
There was a problem hiding this comment.
I am not sure this is the correct method. I think this would occur when there is a cooling and heating HP on the same plant loop. I mean, this is a HP so there is only 1 HX. Ok, that makes sense to have a method to heat and cool the loop to be within some temperature range. If this is true, why would the inlet temperature of one HP ever be different from the other? Unless of course you have 2 HXs and one of those HPs is upstream of the other. And if that is the case then if the first one runs then the second one should be off. As an example, the plant loop temperature set points would be say 10C for cooling and something lower, like 7C for heating so that the plant loop temp stayed between 7C and 10C.. Did I get those control temps correct? So if the inlet temp = 11C, the cooling HP would be on and the heating HP off, even if the cooling HP operated the heating HP inlet temp should not be below 7C. Same if inlet temp = 6C, only heating HP would operate. So what scenario would cause both HPs to operate? Switched cooling/heating set point temperature? One HP overshooting the set point? What is happening in the defect file to cause both HPs to operate?
|
@matthew-larson @lgentile it has been 28 days since this pull request was last updated. |
4 similar comments
|
@matthew-larson @lgentile it has been 28 days since this pull request was last updated. |
|
@matthew-larson @lgentile it has been 28 days since this pull request was last updated. |
|
@matthew-larson @lgentile it has been 28 days since this pull request was last updated. |
|
@matthew-larson @lgentile it has been 28 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 8 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 15 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 9 days since this pull request was last updated. |
1 similar comment
|
@jcyuan2020 @matthew-larson it has been 9 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 8 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 14 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 12 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 8 days since this pull request was last updated. |
1 similar comment
|
@jcyuan2020 @matthew-larson it has been 8 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 10 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 12 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 60 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
2 similar comments
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
11 similar comments
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 7 days since this pull request was last updated. |
|
@jcyuan2020 @matthew-larson it has been 8 days since this pull request was last updated. |
11 participants
Pull request overview

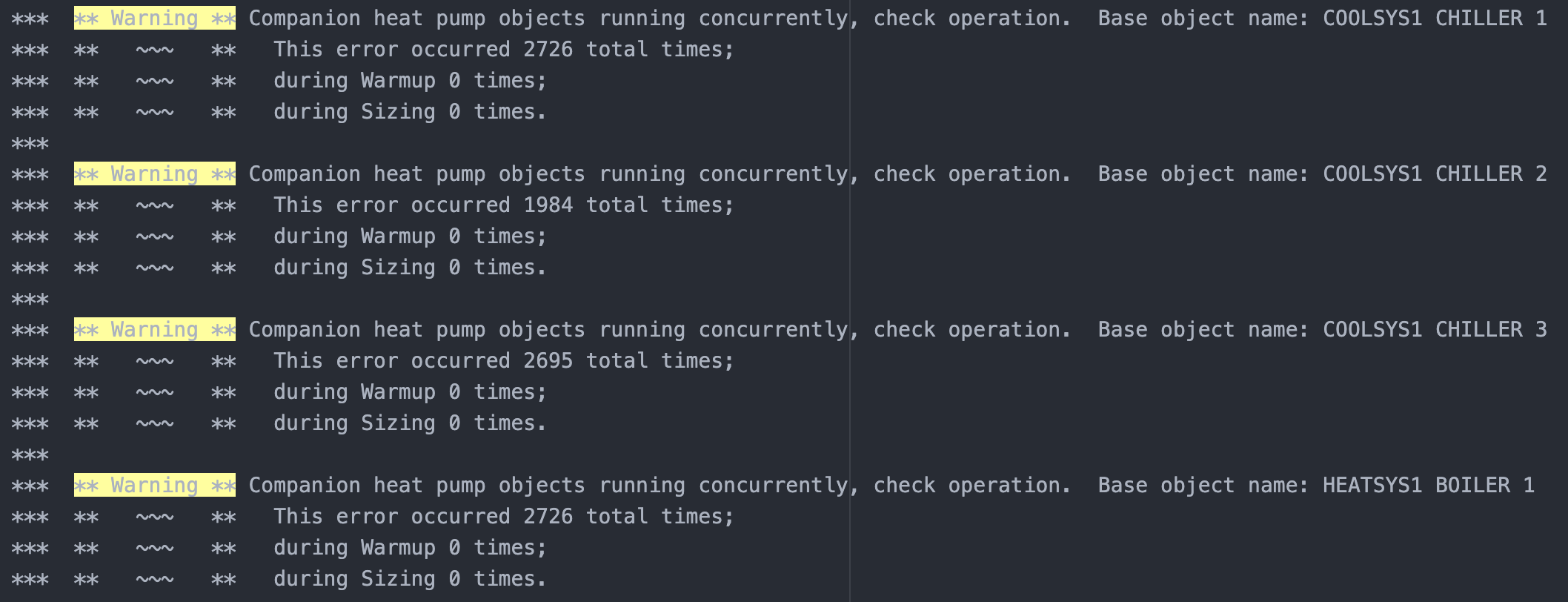

Before:

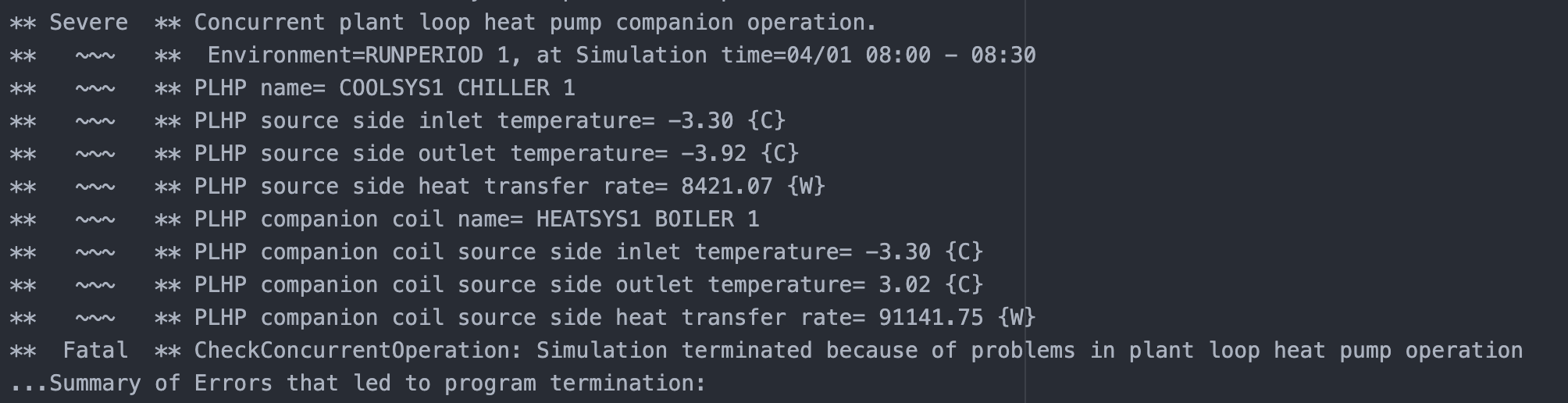

After:
NOTE: Need to update documentation for Companion Heat Pump Name field description
