enCompass + enCapsule + enCryptor + puppet-enc

preface

I started coding this project alone, but I crossed paths with Copilot and we decided to join forces and work on it together.
It has been a great help for coding javascript, jquery, as well as testing, debugging, and documentation.

This project is mirrored on Codeberg and Github, and the artifacts are pushed to Codeberg/GEANT/packages.
If Open Source is your thing, please consider starring and contributing on Codeberg: codeberg/GEANT/docker-encompass.

If you are searching for an OpenVox / Puppet ENC implementation, this repository provides an
OpenVox / Puppet External Node Classifier with Docker deployment, host/group classification, and ENC
API endpoints.

enCompass is a Django-based OpenVox / Puppet External Node Classifier (ENC) packaged for Docker.
It provides a web UI to manage hosts and groups, plus read-only ENC endpoints exposed by both enCompass
and enCapsule.

enCapsule is an optional agent for enCompass that can be used to provide high availability for the ENC API.
It does not depend on a database and boots up in just 1 second, making it ideal for an autoscaling setup.

This repository also includes optional enCryptor and deCryptor components that enable certificate
auto-signing flows through CSR challengePassword generation and validation.

An optional puppet-enc Go binary is also provided as a faster, dependency-free drop-in replacement for
the puppet-enc.sh shell script used to integrate Puppet Server with the ENC API.

Demo site: encompass-demo.geant.org
Repository URL: codeberg.org/GEANT/docker-encompass
site.pp vs enCompass ENC: codeberg.org/GEANT/docker-encompass/docs/SITEPP_VS_ENC.md

enCompass screenshot

Index

Development Guide

Features

  • Host and group management UI
  • ENC host query view for classification checks
  • Autoscale is possible. The container is stateless
  • LDAP and Database authentication modes
  • Optional read-only basic auth for ENC endpoints
  • Optional SSL listeners through Nginx
  • Persistent YAML data via Git repository

Application Flow

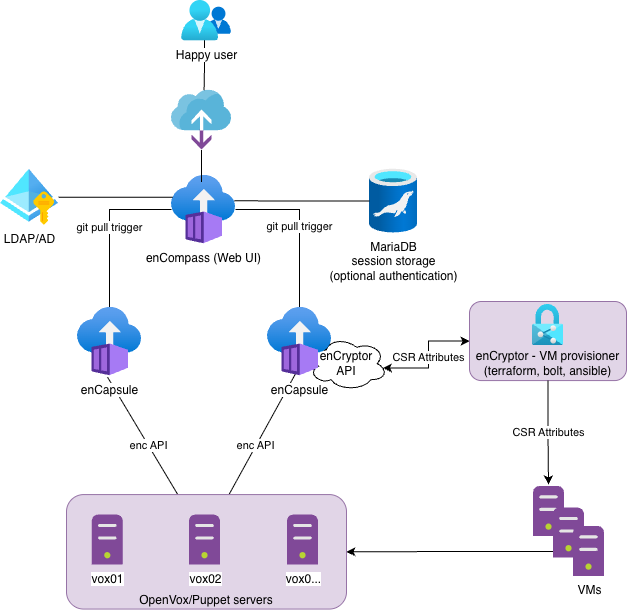

Architecture diagram

Deployment

Nomad Deployment

You can use encompass.nomad and encapsule.nomad and adjust them to your needs.

The job contains:

  • service registration for Consul
  • secrets templates fetched from Vault
  • tags declarations for Traefik

Kubernetes Deployment

Help needed!

Docker Compose

  • Docker + Docker Compose
  • Open local ports: 8080, 8081, 8443, 8444

Quick Start (Docker)

The following instructions are not intended for a production grade deployment.

  1. Copy environment variables file:

    cp vars.example vars

  2. Review and update vars for your environment (LDAP host, secrets, allowed hosts, SSL paths, etc.).

  3. Build and start:

    docker compose up --build

  4. Open UI:

    • http://localhost:8080/encompass/

Endpoints

  • enCompass
    • 8080: web UI (HTTP)
    • 8081: ENC read-only endpoint (HTTP)
    • 8443: web UI (HTTPS, when ENC_USE_SSL=true)
    • 8444: ENC read-only endpoint (HTTPS, when ENC_USE_SSL=true)
  • enCapsule (optional profile)
    • 9081: ENC read-only endpoint (HTTP; container 8081 exposed on host 9081 in Docker Compose)
    • 9444: ENC read-only endpoint (HTTPS; container 8444 exposed on host 9444 when ENC_USE_SSL=true)

Additional enCompass CSR endpoints (usable for external provisioning):

  • GET /hosts/<fqdn>/csr_attributes
  • GET /groups/<name>/csr_attributes

Response example:

---
custom_attributes:
  challengePassword: secure_password

CSR endpoint authentication:

  • Set CSR_API_KEY in vars.
  • Send the token in header X-CSR-API-KEY.
  • Applies to both enCompass and enCapsule CSR endpoints.

Example:

curl -s -H "X-CSR-API-KEY: $CSR_API_KEY" \
  http://enc.example.org:8081/hosts/node1.example.org/csr_attributes

enCryptor + deCryptor (Optional)

enCryptor is an optional helper component for provisioning workflows that retrieve CSR challengePassword values from enCompass/enCapsule and write the expected YAML blob for autosign use cases.

deCryptor is an optional Puppet autosign policy helper that validates incoming CSR challengePassword values against enCompass/enCapsule.

Component names are enCryptor and deCryptor; executable names are encryptor and decryptor.

Full documentation:

puppet-enc (Optional)

puppet-enc is a compiled Go binary that calls the ENC API and serves as a drop-in replacement for puppet-enc.sh. On busy Puppet Servers it is roughly 2–3× faster and uses 3–4× less CPU per invocation compared to the shell script.

Full documentation:

Puppet ENC Keywords

This project is relevant to searches and documentation around:

  • Puppet ENC
  • Puppet External Node Classifier
  • external_nodes and node_terminus integration
  • Dockerized Puppet ENC
  • high-availability ENC endpoint for Puppet Server

Puppet ENC Integration

In principle you can simply use curl against the ENC endpoint as follows:

curl -s http://enc.example.org:8081/hosts/\$1

For production use on a busy Puppet Server, the recommended approach is the puppet-enc Go binary (see puppet-enc (Optional) and docs/PUPPET-ENC.md). If deploying a compiled binary is not practical, the shell script puppet-enc.sh is available as a fallback.

Using puppet-enc (recommended)

sudo install -m 0755 puppet-enc /etc/puppetlabs/puppet/enc/puppet-enc

No external dependencies required.

Create a wrapper so Puppet can pass the node certname ($1):

sudo tee /etc/puppetlabs/puppet/enc/enc-wrapper.sh >/dev/null <<'EOF'
#!/usr/bin/env bash
exec /etc/puppetlabs/puppet/enc/puppet-enc \
  --node "$1" \
  --server encompass.example.org \
  --srv
EOF
sudo chmod 0755 /etc/puppetlabs/puppet/enc/enc-wrapper.sh

Using puppet-enc.sh (fallback)

sudo install -m 0755 examples/puppet-enc.sh /etc/puppetlabs/puppet/enc/puppet-enc.sh

Required tools on Puppet Server: bash, curl, dig, getopt

sudo tee /etc/puppetlabs/puppet/enc/enc-wrapper.sh >/dev/null <<'EOF'
#!/usr/bin/env bash
exec /etc/puppetlabs/puppet/enc/puppet-enc.sh \
  --node "$1" \
  --server encompass.example.org \
  --srv
EOF
sudo chmod 0755 /etc/puppetlabs/puppet/enc/enc-wrapper.sh

Help:

Usage: puppet-enc --node <node> --server <hostname> [--srv | --rrdns --port <port> | --port <port>] [--user <username> --password <password>]
       puppet-enc -h | --help

  -n, --node      Node to query
  -s, --server    Server hostname/IP to connect
  -u, --user      Username (jointly required with --password)
  -p, --password  Password (jointly required with --user)
      --srv       Resolve endpoint via SRV record _puppet8._tcp.<server>
      --rrdns     Resolve <server> to multiple A/AAAA records and try each with --port
      --port      Static port (required for non-SRV mode)

Configure Puppet Server

In /etc/puppetlabs/puppet/puppet.conf:

[server]
node_terminus = exec
external_nodes = /etc/puppetlabs/puppet/enc/enc-wrapper.sh

Apply and verify:

sudo systemctl restart puppetserver
sudo puppet config print node_terminus external_nodes --section master

The ENC command must return valid YAML for the requested node and exit with code 0.

Migration Notes

If you are migrating from site.pp-based classification to ENC, you can start safely with a minimal ENC setup:

  • Keep only default in ENC and assign one test profile/class.
  • Validate one or a few nodes first.
  • Gradually add host/group-specific rules after confidence is built.

About lookup/precedence:

  • enCompass ENC data resolves in this order: exact host -> first matching group selector -> default.
  • In OpenVox/Puppet compilation, site.pp is evaluated before ENC classification is applied.
  • This means broad catch-all logic in site.pp can conflict with or dilute the intended ENC-driven model.

Operational guidance:

  • Avoid keeping competing classification logic in both ENC and site.pp for the same nodes.
  • Remove or narrow broad catch-all rules in site.pp when adopting ENC.
  • If ENC omits environment, Puppet uses the node/default environment (commonly production).
  • Detailed comparison: site.pp vs enCompass ENC.

Configuration

Main runtime configuration is in vars (copied from vars.example).

Core settings

  • DEBUG: Django debug mode
  • DJANGO_SECRET_KEY: Django secret key (generate a unique value)
  • CSR_CHALLENGE_KEY: dedicated symmetric key for encrypted CSR challengePassword storage
  • ALLOWED_HOSTS, CSRF_TRUSTED_ORIGINS, CORS_ALLOWED_ORIGINS
  • TIME_ZONE, LANGUAGE_CODE

MySQL endpoint strategy

MYSQL_NODES is the single configuration knob for the database endpoint:

  • One node: direct connection (single MySQL/MariaDB, external HAProxy, ProxySQL, or any LB).
  • Multiple nodes: enCompass generates an internal HAProxy config at startup and routes MySQL traffic through a Unix socket (/run/haproxy-mysql.sock).

Single-node mode

MYSQL_NODES=mysql.example.org
# or with explicit port:
MYSQL_NODES=192.168.0.1:3306

Multi-node Galera mode

MYSQL_NODES=10.0.0.10:3306,10.0.0.11:3306,10.0.0.12:3306

Health-check options (multi-node only, mutually exclusive)

HTTP check against a monitoring port (e.g. Galera clustercheck on 9200):

MYSQL_NODES=10.0.0.10:3306,10.0.0.11:3306,10.0.0.12:3306
MYSQL_MONITORING_PORT=9200

MySQL-protocol check (requires a haproxy user on the DB with no password):

MYSQL_NODES=10.0.0.10:3306,10.0.0.11:3306,10.0.0.12:3306
MYSQL_HAPROXY_CHECK_USER=haproxy
-- on each Galera node:
CREATE USER 'haproxy'@'%';

If neither option is set, plain TCP connection checks are used.

CSR challengePassword store

  • enCompass now keeps a dedicated encrypted map for CSR attributes under /data/csr_challenges.yaml.
  • Entries are created automatically on host/group save with get-or-create behavior (no overwrite of existing value).
  • Canonical entity names are host/<fqdn> and group/<groupname>.
  • Re-encrypt existing values when rotating the CSR encryption token:
python manage.py rotate_csr_challenge --host node1.example.org --old-token "$OLD_TOKEN" --new-token "$NEW_TOKEN"
python manage.py rotate_csr_challenge --group default --old-token "$OLD_TOKEN" --new-token "$NEW_TOKEN"
python manage.py rotate_csr_challenge --all --old-token "$OLD_TOKEN" --new-token "$NEW_TOKEN"
  • --old-token defaults to CSR_CHALLENGE_OLD_KEY when omitted.
  • --new-token defaults to CSR_CHALLENGE_KEY when omitted.

Logging

  • ENCOMPASS_LOGGING: Django/UI runtime log level (DEBUG|INFO|WARNING|ERROR|CRITICAL)
  • ENCAPSULE_LOGGING: enCapsule agent log level (DEBUG|INFO|WARNING|ERROR|CRITICAL)
  • LDAP_LOGGING: runtime dropdown in Global Settings -> LDAP Settings (DEBUG|INFO|WARNING|ERROR|CRITICAL), default ERROR (restart required)

Puppet environments

  • Predefined environments are managed in Global Settings.
  • On first boot, the default list is: ["production"].

UI behavior:

Feature Branch can be enabled/disabled by the local Admin in the Global Settings.

  • When it's enabled users can type any environment name in the host/group edit forms (free-text input).
  • When disabled, the environment field is a drop-down populated from the predefined environments list.

Host selectors in groups.yaml (hosts list):

  • Plain value (for example web-) => prefix match (hostname.startswith("web-"))
  • Regex value wrapped in slashes (for example /^web-[0-9]+\.example\.org$/) => regex full match

Resolution order:

  • Exact host entry in hosts.yaml
  • Then first matching selector in groups.yaml order (and hosts list order inside each group)
  • Then default group

Validation guardrails:

  • Group host selectors are validated on create/update to prevent ambiguous overlaps across groups.
  • Overlapping selectors (for example plain prefixes like test- and test-app-) are rejected with a validation error.
  • ENC_OVERLAPPING_DEFINITIONS_ENABLED=true disables that overlap rejection and allows overlapping enCompass definitions.
  • This deviates from the recommended non-overlapping selector pattern, but remains deterministic and convenient for migrations because merge resolution order is unchanged (first matching selector wins).

PuppetDB unclassified hosts

The UI page /encompass/unclassified_hosts/ lists nodes considered unclassified.

A node is marked unclassified when its resolved ENC payload (environment, classes, parameters) matches the ENC default group profile.

Configuration:

  • UNCLASSIFIED_HOSTS_ENABLED: enable/disable the unclassified hosts page logic (true/false, default: true)
  • PuppetDB settings are managed in Global Settings:
    • PUPPETDB_SCHEMA (http or https, default: http)
    • PUPPETDB_HOST (default: puppetdb.example.org)
    • PUPPETDB_PORT (integer, default: 8080)
    • PUPPETDB_TIMEOUT (integer seconds, default: 20)
    • Optional auth modes: none, token, basic
    • Optional mTLS: client certificate and key paths
    • Optional TLS controls: custom CA certificate path or "Skip TLS Verify"

The nodes endpoint is built internally as:

  • ${PUPPETDB_SCHEMA}://${PUPPETDB_HOST}:${PUPPETDB_PORT}/pdb/query/v4/nodes

Authentication

Authentication behavior:

  • Local Django/MySQL authentication is always enabled.
  • LDAP is optional and acts as a fallback when enabled in Global Settings.
  • If a username exists in both local DB and LDAP, local DB authentication wins.

LDAP access groups:

  • Users must be members of one of these LDAP groups to log in: enc_admin or enc_viewer.
  • enc_admin grants read/write access to hosts and groups management.
  • enc_viewer grants read-only access to the UI.
  • With Active Directory profile, nested group membership is supported.

LDAP connection/search settings are managed in Global Settings.

LDAP user attribute map behavior:

  • The LDAP User Attribute Map Profile selector supports Default and Custom.
  • Default uses the common directory attributes givenName, sn, and mail.
  • Custom lets you provide a JSON mapping when your directory uses different attribute names.

Access control note:

  • Global Settings is available only to the local admin account.
  • LDAP users (including enc_admin) cannot open Global Settings.

LDAP group mirroring behavior:

  • The Mirror LDAP Groups into Django toggle (in Global Settings -> LDAP Settings) controls whether LDAP memberships are mirrored into local Django auth_group entries on login.
  • The required LDAP access groups remain enc_admin and enc_viewer; mirroring only affects local Django group copies.
  • Set it to disabled to avoid importing all AD groups into Django.

Local Django auth mode bootstraps two local users on first start:

  • admin (initial password: admin)
  • viewer (initial password: viewer)

Change these initial passwords immediately from the User Settings page.

ENC Viewer Basic Auth

Set ENC_VIEWER_PASSWORD to protect read-only ENC endpoints with basic auth.

  • Username: encompass
  • Password: value of ENC_VIEWER_PASSWORD

Leave empty to disable endpoint basic auth.

SSL

Enable HTTPS listeners by setting:

  • ENC_USE_SSL=true
  • ENC_SSL_CERT_PATH
  • ENC_SSL_KEY_PATH

Git settings

The application accepts the Git SSH private key in either of these forms:

  • GIT_SSH_PRIVATE_KEY: inline key content (works well in docker-compose env files)
  • GIT_SSH_PRIVATE_KEY_FILE: path to a file containing the key (recommended for Kubernetes/Nomad secrets)

Set only one of the two variables above (they are mutually exclusive).

Branch behavior:

  • GIT_BRANCH: branch used by enCompass for clone/fetch/checkout/commits/pushes.
  • GIT_HOST: SSH Git host.
  • GIT_REPO_PATH: repository path on the host (for example puppet/enc-data.git).
  • GIT_REPO_USERNAME: SSH username used for Git operations.
  • GIT_SSH_KEY_TYPE: SSH key algorithm (rsa, ed25519, ecdsa).
  • GIT_REPO_URL: optional full repository URL override. If unset, runtime scripts compose ssh://<GIT_REPO_USERNAME>@<GIT_HOST>/<GIT_REPO_PATH>.

Typical setup:

  • Set GIT_BRANCH=main (or your target branch, for example dev or a feature branch).

HA considerations

Once configured on the Vox/Puppet server, ENC becomes essential for its operation and must be highly resilient.

enCompass is stateless and supports autoscaling. It can be set up to run at least two instances for High Availability and inherently load balancing.

The database is only crucial for the UI’s operation but is irrelevant for the ENC endpoint.

enCapsule Agent Runtime

The repository now includes an agent runtime named enCapsule.

  • It serves only read-only ENC endpoints (/hosts, /groups) and /healthz.
  • It does not run Django migrations and does not require MySQL to start.
  • It uses the same shared ENC core logic as enCompass.

Run enCapsule with Docker Compose

A full description of enCapsule and its sync flow with enCompass is available in the enCapsule documentation.

docker compose --profile encapsule up --build encapsule

Default exposed port in compose profile:

  • 9081 -> enCapsule read-only ENC API
  • 9444 -> enCapsule read-only ENC API (HTTPS, when ENC_USE_SSL=true)

Optional Git sync trigger

You can configure a token and trigger a pull/update of ENC data:

  • ENCAPSULE_SYNC_TOKEN=<your-token>
  • POST /sync with header X-Encapsule-Token: <your-token>

Example:

curl -X POST \
  -H "X-Encapsule-Token: ${ENCAPSULE_SYNC_TOKEN}" \
  http://localhost:9081/sync

Fan-out sync to multiple enCapsule agents

Use /usr/local/bin/encapsule-sync.sh from the enCompass runtime after a successful Git push.

When host/group data is changed from enCompass, the application automatically:

  1. commits changed ENC YAML files (if any),
  2. pushes to the configured Git branch,
  3. triggers enCapsule sync fan-out.

Git sync execution is configurable in Global Settings:

  • GIT_SYNC_MODE: sync (default, request waits) or async (background worker)
  • GIT_SYNC_TIMEOUT: timeout in seconds (default 30)
  • GIT_SYNC_RETRIES: retry count after first failure (default 2)
  • GIT_SYNC_RETRY_DELAY: seconds between retries (default 2)

Common variables:

  • ENCAPSULE_SYNC_TOKEN: shared token expected by each enCapsule /sync (must be set in environment on both services)
  • Routing settings are managed in Global Settings:
    • ENCAPSULE_SYNC_SCHEME: http or https (default http)
    • ENCAPSULE_SYNC_TIMEOUT: curl timeout in seconds (default 5)
    • ENCAPSULE_SYNC_PORT: default port for host-only targets (default 8081)
    • ENCAPSULE_SYNC_USE_SRV: true for SRV names, false for direct targets
    • ENCAPSULE_SYNC_HOST: one or more comma-separated entries

Accepted ENCAPSULE_SYNC_HOST entries:

  • With ENCAPSULE_SYNC_USE_SRV=false (default):
    • enc-a.internal (uses default port 8081)
    • enc-a.internal:9081 (explicit port)
    • http://enc-a.internal:9081/sync (full URL)
  • With ENCAPSULE_SYNC_USE_SRV=true:
    • encapsule-sync.service.internal (SRV name)
    • _encapsule-sync._tcp.enc.example.org (SRV name)
    • Note: host:port and full URLs are rejected in SRV mode.

Example:

ENCAPSULE_SYNC_HOST="encapsule-a.internal,encapsule-b.internal"
ENCAPSULE_SYNC_TOKEN="<shared-token>"

Example:

ENCAPSULE_SYNC_HOST="_encapsule-sync._tcp.enc.example.org"
ENCAPSULE_SYNC_TOKEN="<shared-token>"

Run manually:

/usr/local/bin/encapsule-sync.sh

The script sends requests in parallel and fails if any target fails. If ENCAPSULE_SYNC_HOST is empty, the script exits successfully without sending requests.

In Nomad, SRV entries are typically easiest. In non-SRV environments, use explicit hostnames/IPs.

Data Backup

Host/group YAML data is stored in the configured Git repository.

When using LDAP authentication, the data stored in the database is not critical. It can be rebuilt from scratch and only session cookies will be lost.

When the authentication backend is MySQL, the database stores user information. It’s recommended to back up your MySQL database when Database authentication is used.

Security Checklist

  • Set a strong DJANGO_SECRET_KEY
  • Disable DEBUG in production
  • Restrict ALLOWED_HOSTS and ALLOWED_CIDR_NETS
  • Change initial local user passwords after first startup
  • Enable USE_SSL for production exposure

Doubts and open questions

  • enCompass allows setting empty classes for hosts/groups, which is valid and it might come to hand in some edge cases. Is it sensible and appropriate?

ToDo

  • create end-user documentation with screenshots and examples. This is a critical piece that’s currently missing.
  • approval flow for host/group changes. It might be a requirement in some environments, but it adds complexity and overhead.
  • add hints in the UI or validation for the classes. This feature is available in Foreman.
  • OpenLDAP is currently untested. Contributions are welcome.

License

This project is licensed under the GNU General Public License v3.0 or later (GPL-3.0-or-later). See LICENSE for details.

SPDX-License-Identifier: GPL-3.0-or-later

About

A Django UI to leverage Nodes and Groups with Puppet's External Node Classifier (ENC) API

Resources

Readme

License

View license
Activity
Custom properties

Stars

0 stars

Watchers

0 watching

Forks

0 forks
Report repository

Releases

32 tags

Packages





Contributors

Languages
