Unreal Engine Modular Interaction System

1. About the Project

This project is a modular interaction system for Unreal Engine. The system includes:

• Doors: Normal and locked, with modular events
• Notes: Modular note system configurable directly in the level
• Item & Inventory: Pickup system including unique items like flashlight
• Chest System: Place and reveal items in-game
• Light Switch System: Fully modular lights
• Highlight & Custom Interaction Text

The system is fully modular and easy to extend. It is also open-source for anyone to use and improve.

---

2. Installation

You can either download the project from GitHub or use the direct download link provided below.

Option 1 – GitHub:

git clone https://github.com/Batin-dev/ue5-fps-interaction.git

Option 2 – Direct Download: Download the Project

After downloading or cloning, simply open the .uproject file in Unreal Engine 5 or later. The project will open immediately.

Note: The project might be slightly large because it includes Unreal Engine Starter Content.

---

3. Usage & Examples

You can place blueprints directly into your level. All interactions are managed through base classes, making it easy to customize child actors.

---

4. Blueprints & Class Structure

BP_Interactable_Base

• Description: Parent class for all interactable objects. This class includes an interface with an Interact function that can be overridden in child blueprints.

• Features:

  • Interaction Text (fully customizable per child using SetInteractionText)

  • Outline / Highlight system

    • ActivateOutline and DeactivateOutline custom events are available.
    • No need to manually set up outlines; all meshes without the NoOutline tag automatically get highlighted.

  • Interact function (added by double-clicking the Interact interface in the Interfaces section and overridden in child blueprints for custom actions)

• Usage: Create child blueprints and:

  1. Override the Interact() function for custom behavior
  2. Use SetInteractionText to define child-specific interaction text

---

BP_Door_Base

• Description: Modular system for normal and locked doors.

• Customization Functions:

  • SetTLPlayRate → Adjusts door opening/closing speed
  • SetOpenAngle → Sets the door's opening angle
  • SetCloseSoundDelay → Delay before the closing sound plays (experimental)
  • SetOpenAndCloseSounds → Sets custom open and close sounds

• Events:

• Open/Close Door Events → Handles door opening and closing; already present in BP_Door_Base and linked to the Interact function (BPI), can be overridden in child blueprints for custom behavior

• Child blueprints can leave the functions empty to use default values, or override them for custom behavior

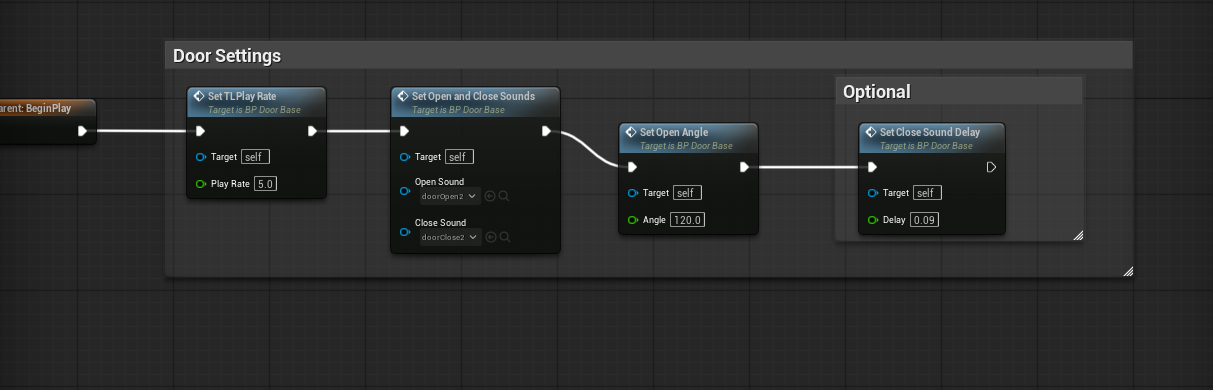

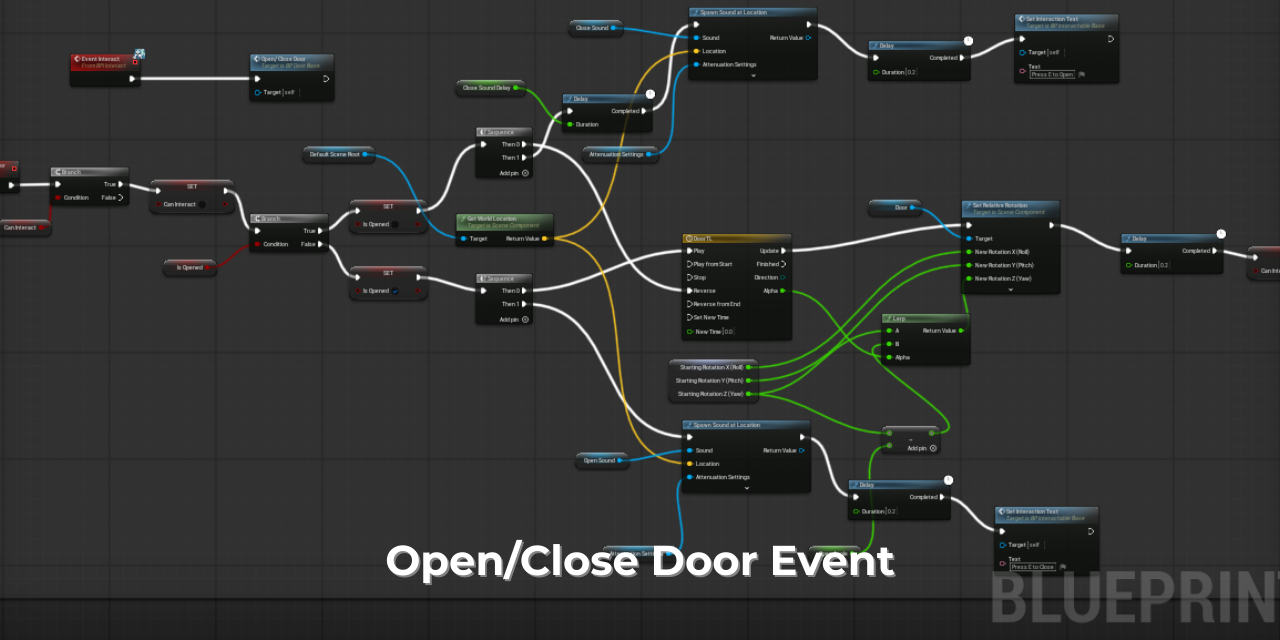

Open/Close Door Event Image: Example custom settings usage in child class:

---

BP_Door_Locked_Base

• Description: Base class for locked doors, extending BP_Door_Base.

• Events:

  • TryOpenDoor → Attempts to open the door by checking for the correct key.

    • KeyID can be set directly in the level/map.
    • Child blueprints can override this event to customize mesh, sounds, or other behavior.
    • Leaving TryOpenDoor empty in child blueprints will use the default behavior.

• Customization Functions:

  • All customization functions from BP_Door_Base (SetTLPlayRate, SetOpenAngle, SetCloseSoundDelay, SetOpenAndCloseSounds) are also available here.

Note: In child blueprints, make sure to call the TryOpenDoor event inside the Interact function (BPI)

Example usage in child class:

---

BP_Note_Base

• Description: Base class for notes. This class is simple and not heavily modular.

• Usage / Customization:

  • You can create child blueprints to use different meshes if desired.
  • The note's content can be changed by modifying the Note Text variable directly in the level/map.

• Events:

  • Optional: You can call custom events inside the Interact function (BPI) in child blueprints if additional interaction logic is needed.

---

BP_LightSwitch

• Description: Simple light switch system.

• Usage / Customization:

  • Place the blueprint in your level and assign lights to the Lights array directly from the map.
  • You can set the initial state of each light using the IsOpened variable in the map (true = on, false = off).

• Notes:

  • Very lightweight and straightforward; minimal setup required.

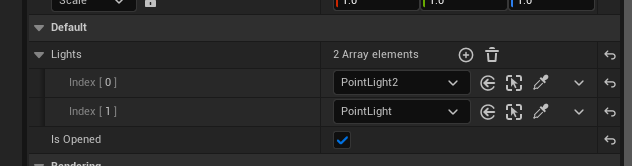

Example usage in level:

---

BP_Item_Base

• Description: Base class for all pickable items.

• Usage / Features:

  • AddToInventory function → Adds the item to the inventory.

    • You can define whether the item is unique (only one can be picked) or stackable.

  • DestroyActor (Safe) → Removes the item from the world after pickup.

  • PlaySound event → Plays a pickup sound. If no sound is specified, default values are used.

  • The Interact function (BPI) in the base class is empty; child blueprints can call these functions when interacted with.

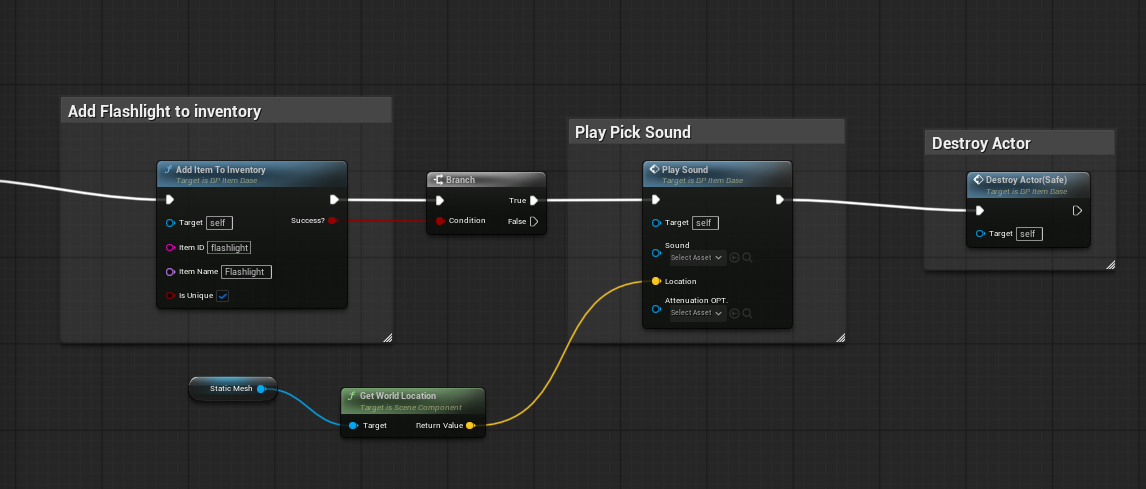

Example usage in flashlight:

🤝 Contributing

This project is open-source! Contributions are welcome:

1. Fork the repository
2. Create your feature branch (git checkout -b feature/AmazingFeature)
3. Commit your changes (git commit -m "Add some AmazingFeature")
4. Push to the branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

License

Unlicense – Use however you like, no restrictions!
