IrisID-Secure-Biometric-Recognition

Detection and Recognition of human Iris using YOLOv8 and Siamese Network

About the "IrisID-Secure-Biometric-Recognition"

In this project, we propose a system for human iris detection and recognition using YOLOv8 object detection and Siamese neural network. We obtained a dataset of human eyes from Roboflow, which includes positive and negative samples. We train a YOLOv8 model on this dataset to detect human irises in images and extract the coordinates of the bounding boxes as outputs. We then use OpenCV to crop the iris regions from the original images based on the obtained bounding box coordinates. Further, we apply image sharpening, brightness enhancement, and noise removal techniques to the cropped iris images. The preprocessed iris images are saved and used as inputs for a Siamese neural network. The Siamese network is trained on this dataset to learn a similarity metric for iris recognition, using the cropped iris images from the positive and negative samples. The proposed system aims to achieve accurate human iris detection and recognition for various applications, such as biometric authentication and surveillance.

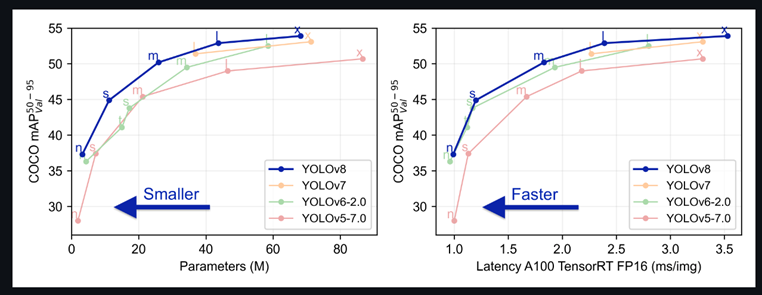

Figure 1: Shows performance of YOLOv8 other YOLO models

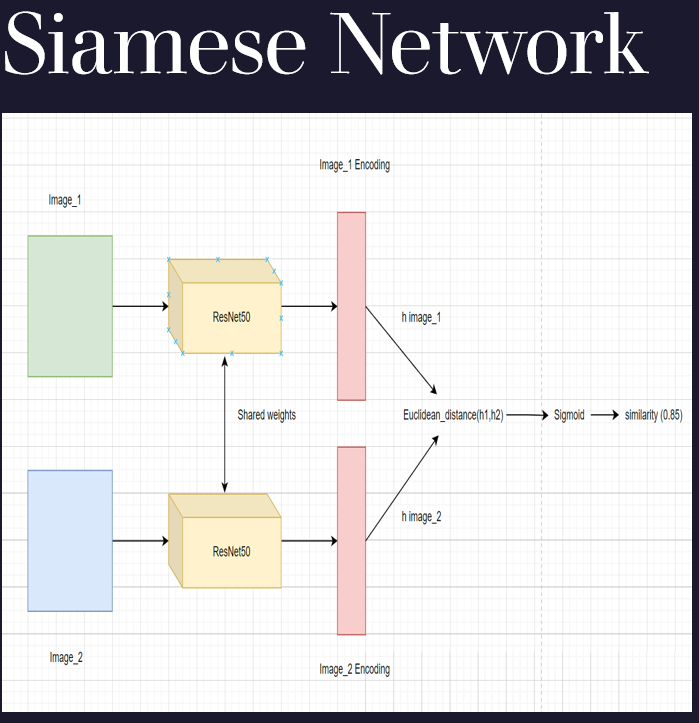

Figure 2: Shows Architecture of Siamese model with ResNet50 as Embbeding.

• Built With The project is built on the hypergator platforms ineractive app's jupyter notebook For the File" Dtetcion.ipynb" YOLOv8 and for "Iris_Recogniton.ipynb" ,file tensorflow 2.6.0 platform available on the hypergator interactive apps were used.

Getting Started

• Dependencies Here, list all libraries, packages and other dependencies that need to be installed to run your project. Include library versions and how they should be installed if a special requirement is needed.

• Tensorflow

pip install tensorflow

• Opencv

pip install opencv-python

• RoboFlow

pip install roboflow

• Ultralytics

pip install ultralytics

Pip install the ultralytics package including all requirements in a Python>=3.7 environment with PyTorch>=1.7.

• Alternative: Export your Environment

Alternatively, you can export your Python working environment, push it to your project's repository and allow users to clone it locally. This way, anyone can install it and they will have all dependencies needed. Here is how you export a copy of your Python environment:

conda env export > requirements.yml

The user will be able to recreate it using:

conda env create -f requirements.yml

Installation

1. Clone the repo

   git clone https://github.com/uf-eel6825-sp23/final-project-code-kumaramit41.git

2. Setup (and activate) your environment

conda env create -f requirements.yml

Code Implementation

The project contains three .ipynb files namely "Detection" for detection of Iris, "Iris_Recognition" for recognition task and "unzip" file to unzip the downloaded data.

• Dataset download

• The Custom Dataset for the detection task will be downloaded automatically in the current directory when running the "download the dataset from roboflow" section of Detection file with the name "Iris_detection-2" for training the YOLOv8 model "Iris_detection-2/data.yaml" is given as input path to "model.train()" in Training the yolov8 model section.
• The dataste for recognition was creted by recording video of eye using mobile phone. The images were obtained by dividing image frame wise. The file "Convert_videos_to_images.ipynb" to do this task were video path is input.
• The dataset for recognition task is availabel at following link="https://drive.google.com/file/d/1qWguEe_glfjCESZkuytzggLKjG4bwPrI/view?usp=share_link" in a .zip file format with name "data.zip". This data should be in the current working directory. The zip file can be unzipped using the "unzip" file.

• Model Implementation

• First run the "Detecion" file after training the model.
• Give the path of "data" file downloaded in the "Creating directiory for preparing data for iris recogniton task" section to root_folder = (path_of_datafile_for_recognition).
• Running the "Creating directiory for preparing data for iris recogniton task" Section comletetly will create a directory "data_crop" in the current directory, which will be used as training and test data for recognition task.
• After this if all the python files and data folders are in same "current directory" running the "Iris_Recognition","Iris_Recognition_ResNet50"and"Iris_Recogniton-VGG19" pyhton file cell-by-cell will give the ouput of precision, recall in the "Comparison Matrix section" and results of the recognition model in the "Result" section of the pyhton file.
• The number of epoches can be accessed in Train the model section for each .ipynb file

• Results

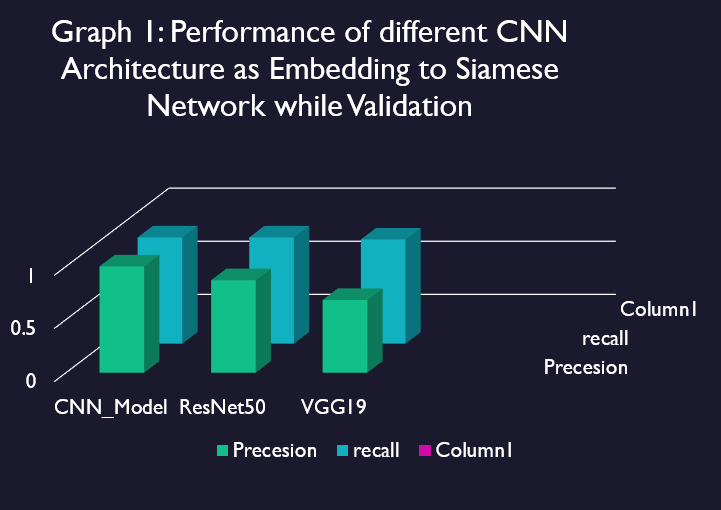

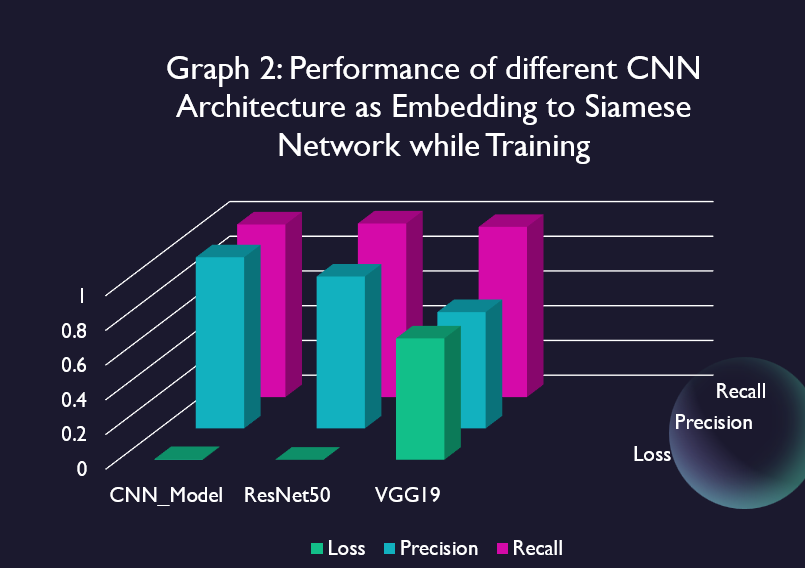

Recognition models validation set evaluation

Detection Output

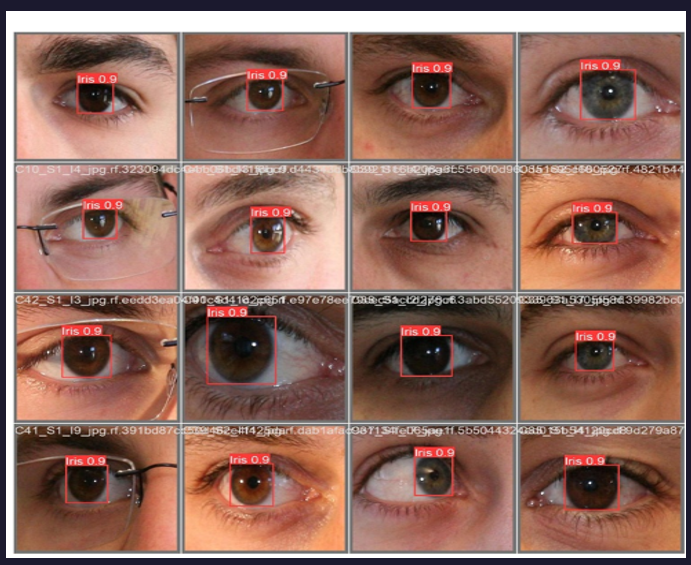

Figure 3: Shows the output of the Detection model

Recognition Results

Figure 4:Shows the output when Input Iris image matches the anchor image

Figure 5:Shows the output when Input Iris image does not match with anchor image

• Detection model information

• The results of training and validation are stored in the "runs" folder the "train" subfolder contain the "runs\detect\train10\weights\best.pt" and information about how model performed while training.
• The best.pt file is used for reloading the model for detection task.
• The validation results are saved in "runs\detect\val".

Authors

Amit Kumar -kumar.amit1@ufl.edu

project link :https://github.com/uf-eel6825-sp23/final-project-code-kumaramit41.git

Acknowledgements

*Catia Silva *[Chaoyue Sun] - chaoyue.sun@ufl.edu *[ University of Florida]
