🌿 LeafXplain-Lite: Advanced Plant Disease Diagnosis

LeafXplain-Lite is a smart, explainable AI-based web application for real-time plant disease detection. It provides intuitive visualizations, interpretable model outputs, and expert treatment suggestions through Gemini AI — all in one lightweight package.

Features at a Glance

Image-Based Disease Analysis

• Upload a leaf image to get a fast and accurate disease diagnosis.
• Powered by a CNN model with attention mechanisms and Grad-CAM explanations.
• Visualizes which part of the leaf influenced the model's decision.

App Walkthrough

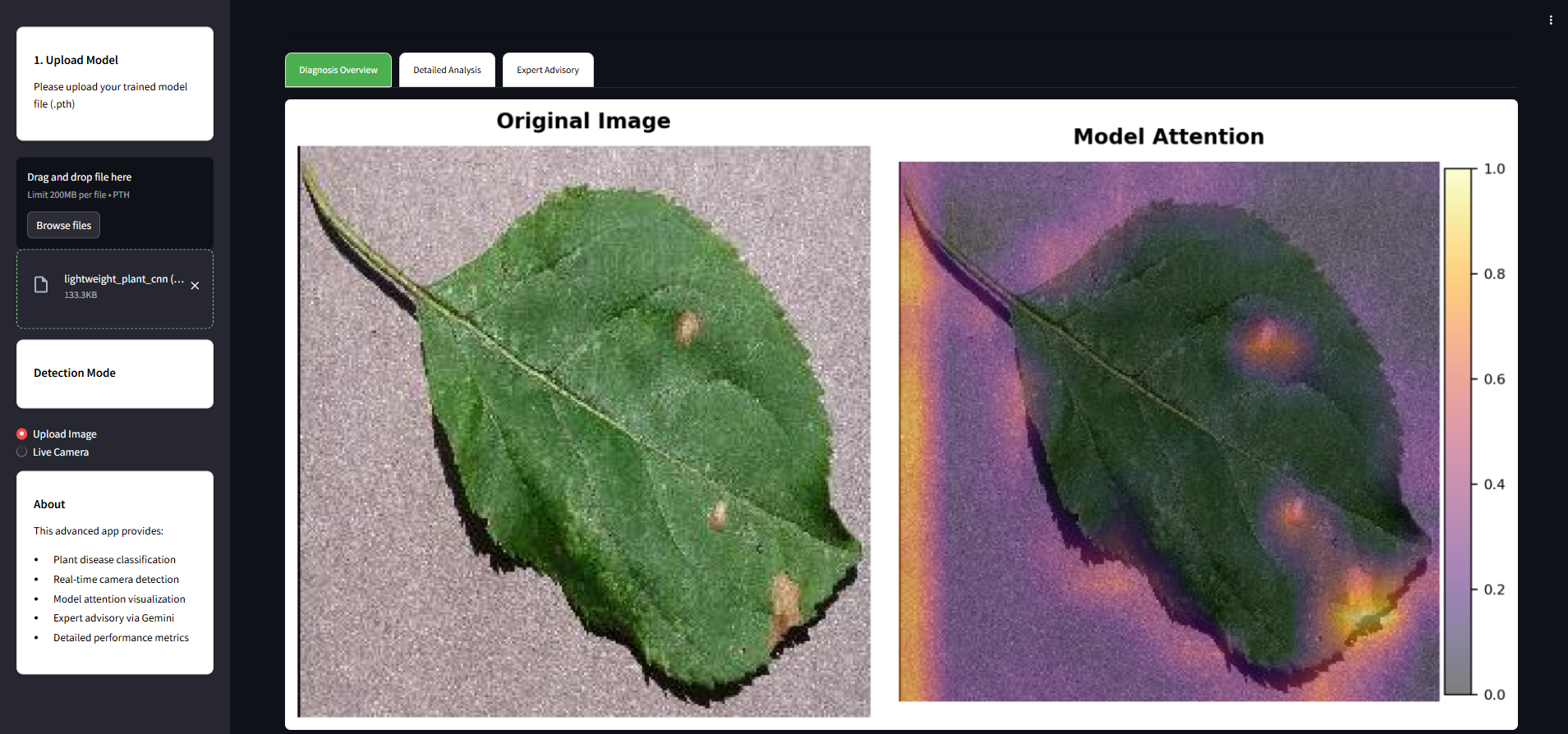

Diagnosis Overview – Instant Summary

When an image is uploaded, the app provides a quick summary of predictions, including:

• predicted disease
• Grad-Cam Visuals
• Predicted Result

Detailed Analysis – Interpretability & Insights

This section breaks down the prediction with clear, scientific visualizations:

• Original Image: What you uploaded.
• Attention Heatmap: Shows what the model is focusing on.
• Class Activation Map (CAM): Highlights influential image regions.
• Prediction Distribution: Probability scores for each class.

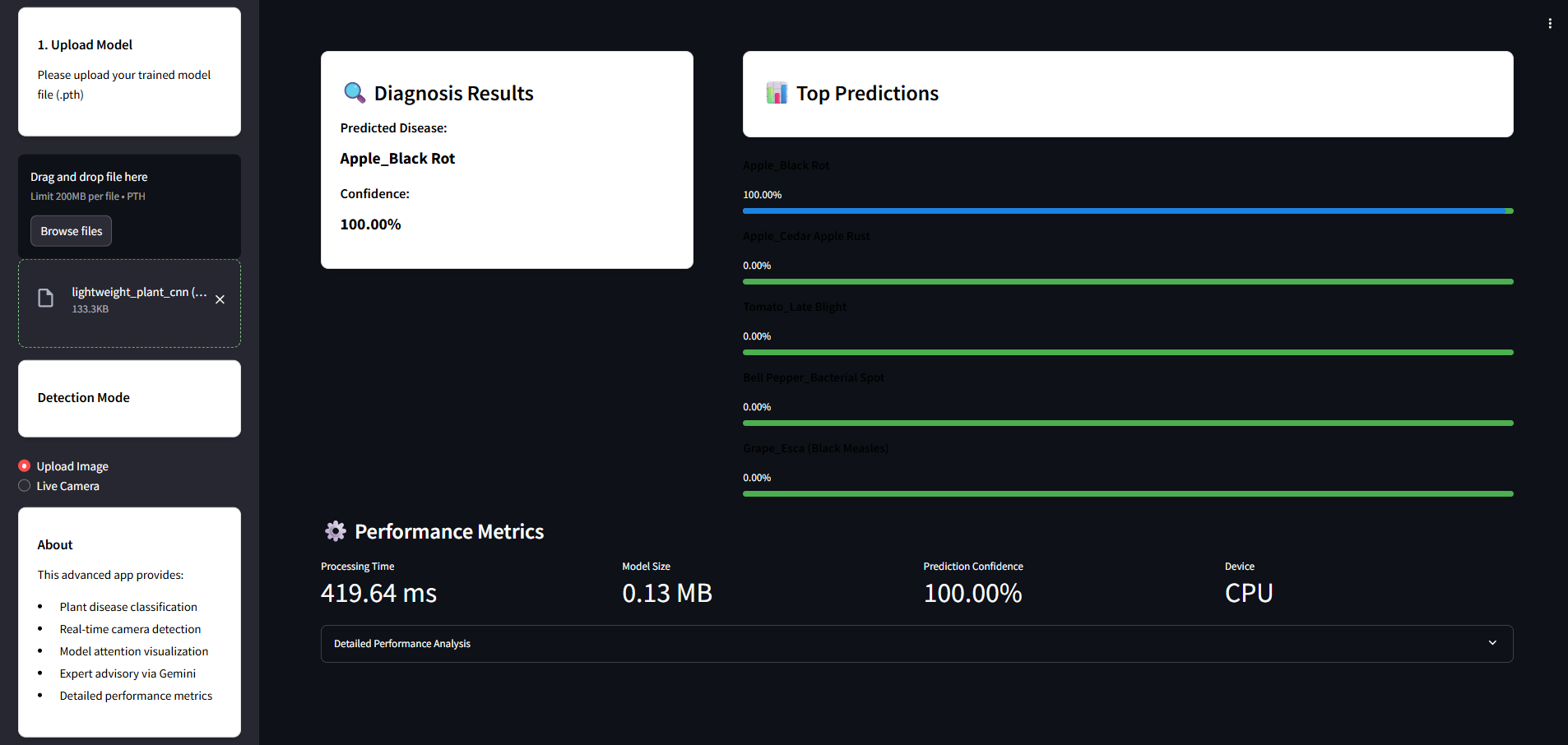

Diagnosis Result

Once a prediction is made, LeafXplain-Lite provides the diagonosis results:

• Predicted Disease
• Disease Confidence
• Top Predictions
• Processing Time
• Model Size

Live Detection from Camera

• Switch to Live Camera Mode for real-time disease detection.
• Get instant visual feedback with bounding boxes and overlays.
• Gemini-generated advice is just one click away.

Quick Start

Prerequisites

• Python 3.8+
• Streamlit
• PyTorch
• Google Generative AI SDK

Installation

git clone https://github.com/AbidHasanRafi/LeafXplain-Lite.git
cd LeafXplain-Lite
pip install -r requirements.txt

Running the App

streamlit run app.py

Configuration Guide

1. Add Gemini API Key

• Get your API key from Google
• Add to Streamlit secrets or directly in code (for testing)

2. Load or Upload Model

• Use the default provided model or upload your own .pth
• Model switching is available via dropdown

Model Details

Architecture

# model architecture
class PlantDiseaseCNN(nn.Module):
    def __init__(self, num_classes):
        super(PlantDiseaseCNN, self).__init__()
        self.features = nn.Sequential(
            nn.Conv2d(3, 32, kernel_size=3, padding=1, bias=False),
            nn.BatchNorm2d(32),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=2, stride=2),
            nn.Conv2d(32, 32, kernel_size=3, padding=1, groups=32, bias=False),
            nn.Conv2d(32, 64, kernel_size=1, bias=False),
            nn.BatchNorm2d(64),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=2, stride=2),
            nn.Conv2d(64, 64, kernel_size=3, padding=1, groups=64, bias=False),
            nn.Conv2d(64, 128, kernel_size=1, bias=False),
            nn.BatchNorm2d(128),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=2, stride=2),
            nn.Conv2d(128, 128, kernel_size=1),
            nn.Sigmoid()
        )
        self.classifier = nn.Sequential(
            nn.AdaptiveAvgPool2d(1),
            nn.Flatten(),
            nn.Dropout(0.5),
            nn.Linear(128, num_classes)
        )

    def forward(self, x):
        features = self.features[:-1](x)
        attention = self.features[-1](features)
        attended = features * attention
        return self.classifier(attended)

Supported Plant Diseases

Supports detection of 20 common plant diseases, including:

• Apple Scab
• Tomato Late Blight
• Grape Black Rot
• Corn Common Rust
• Potato Early Blight ... and more.

Why Use LeafXplain-Lite?

• Explainable AI — Grad-CAM shows where the model focuses
• Real-time Detection — From image uploads or live camera
• Gemini-Powered Expertise — Instant, actionable advice
• Lightweight — Small model size, fast on CPU or GPU
• Clean UI — Tab-based view support

Contact

• Project Maintainer – Md. Abid Hasan Rafi
• Project Contributor – Pankaj Bhowmik
• GitHub Repository – https://github.com/abidhasanrafi/leafxplain-lite
